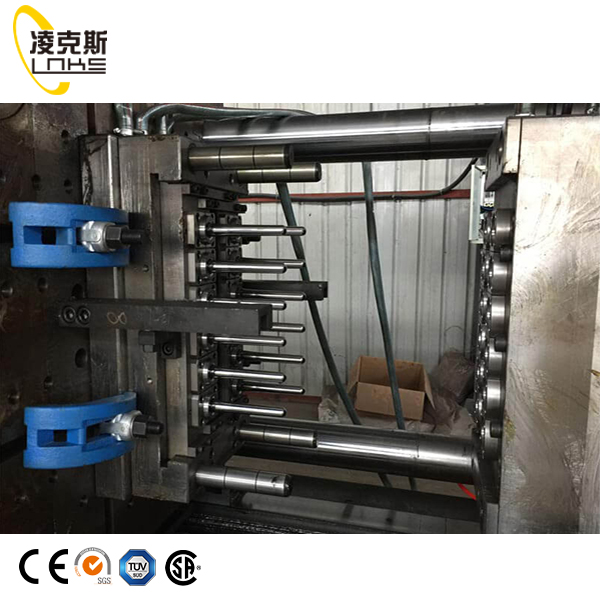

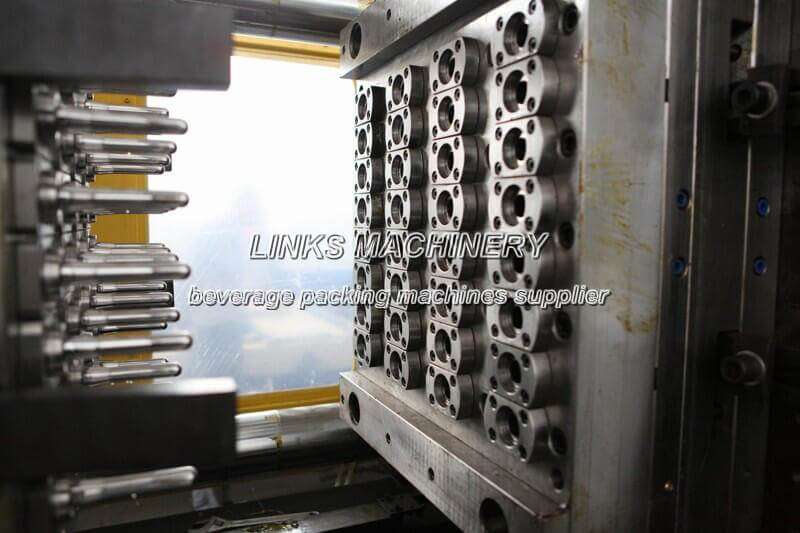

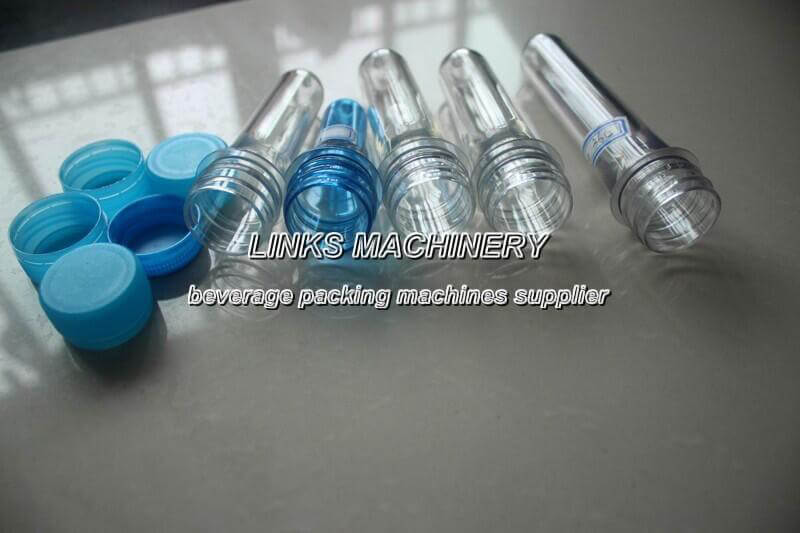

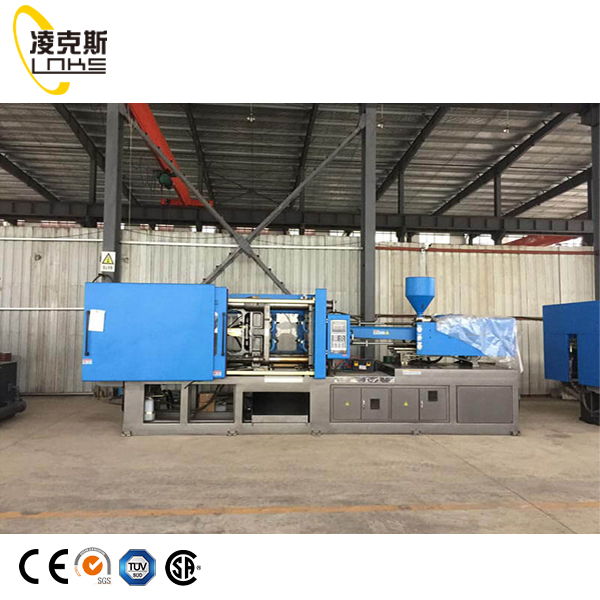

PET Preform Injection Molding Machine
Plastic Injection Molding Machine. Adopting Europe technology, hydraulic unit adopts proportional pressure and flow control, the pressure and the speed can be adjusted, stable movement curve and gentle shock, the computer is imported from industry family. The LCD displaying screen with high clarity has Chinese and English language to use. Close-loop PID temperature control with the advantage of high precision. The operating table of the injection moulding machine have two safety, one is machine safety, another is electrical safety, that ensures the operators’ safety.
Quantity:
- Model: SZ-3000A
- Brand: LINKS
- Code: 8477101090
Product Description
PET Preform Injection Molding Machine
| MODEL | SZ-3000A | ||
| INJECTION UNIT | | A | B |
| Screw diameter | mm | 56 | 58 |
| Shot size(theoretical) | Cm⊃3; | 788 | 845 |
| Shot weight | g | 709 | 760 |
| Injection pressure | Mpa | 178 | 166 |
| Injection rate | g/s | 210 | 226 |
| Screw L/D ratio | L/D | 21.6 | 21 |
| Screw speed | r.p.m | 0-180 | |
| Nozzle Diameter | Srmm | 20 | |
| CLAMPING | | | |
| Clamp tonnage | KN | 3000 | |
| Toggle stroke | mm | 560 | |
| Mould Thickness | mm | 220-600 | |
| Space between tie-bars | mm | 580x580 | |
| Ejector stroke | mm | 160 | |
| Ejector tonnage | KN | 80 | |
| Ejector number | Piece | 9 | |
| Hole Diameter | mm | 160 | |
| OTHERS | | | |
| Heat power | KW | 15.5 | |
| Max. pump pressure | MPa | 16 | |
| Pump motor power | KW | 25 | |
| Valve Size | mm | 16 | |
| Machine dimension | m | 6.5X1.8X1.8 | |
| Machine weight | t | 9 | |
| Oil tank capacity | L | 370 | |
| NO. | Parts Name | Brand | Origin |
| 1 | Hydraulic Motor | Dandun | Italy |
| 2 | Hydraulic Oil Pump | HYTORC | Taiwan |
| 3 | Proportional Hydraulic Valve | HOYEA | NINGBO |
| 4 | Transducer | Gefran | Italy |
| 5 | Sealing Rings | HALLITE | USA |
| 6 | Reversal Hydraulic Valve | Sunny | USA |
| 7 | Contactor | LG | KOREA |
| 8 | Air-break Switch | LG | KOREA |
| 9 | Computer | HONGXUN | GUANGZHOU |
| 10 | Limit Switch | OMRON | JAPAN |
| 11 | Proximity Switch | Schneider | FRANCE |
1) Can your factory provide the whole plant from A to Z?
A: Yes, we can provide the complete plant, from bottling making plant, water purification plant, to filling packing plant.
2) How can I know the machinery quality before I order?
A: Frist, we will invite you visiting our factory to check the machines quality, and show the machines running for you in our factory.
3)What certificates you can provide?
A: Our factory provide the CE, SGS, ISO, and accroding to some countries, we also can provide the Pvoc, Coc, Soncap...ect
4)Can your factory make the bottle drawing, workshop layout, and labels for us?
A: We can help customers design their own bottle shape, workshop layout and label drawings, these jobs are free charge.
(Workshop need customer to provide the size of factory)
5)Installation and Training Time
A: We have professional engineer for oversea installaion and training, they can speak English, and have much experience oversea work.
Customer needs to provide the engineer visa, air tickets, sleep room and meals. Each day salary is 80usd, around 20-40days.
6) Warranty time:
We provide the 18 months as our machinery parts warranty time, and electric parts warranty time is 12 month.
