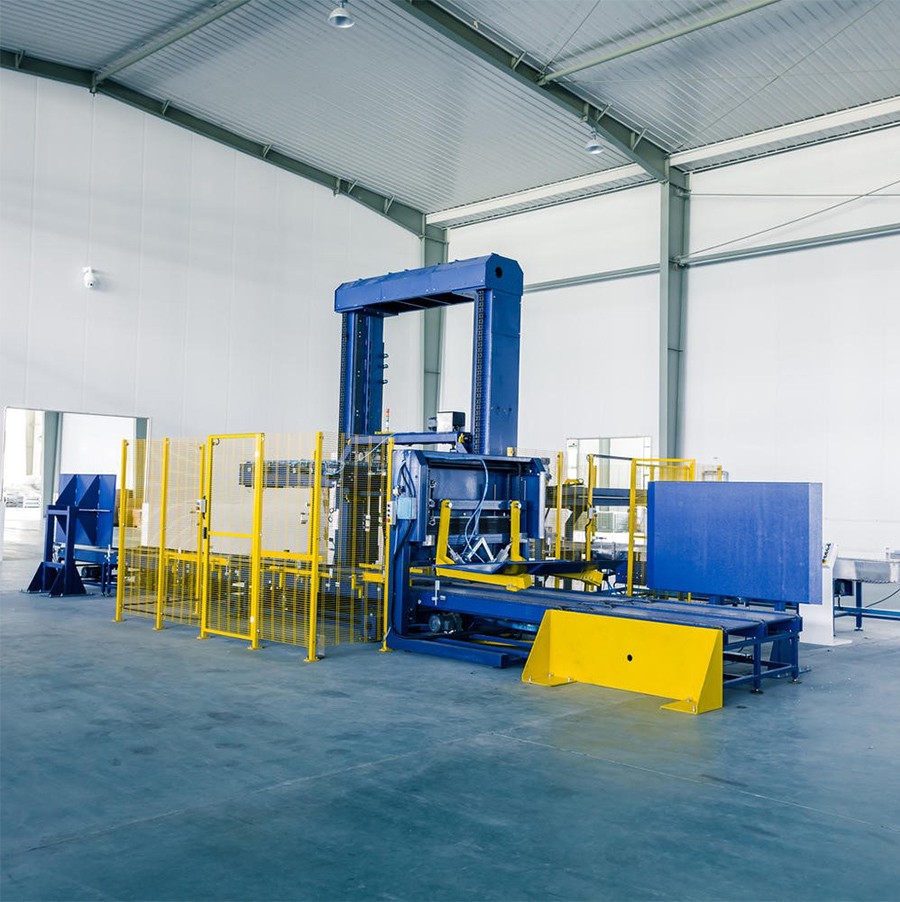

Automatic Palletizer

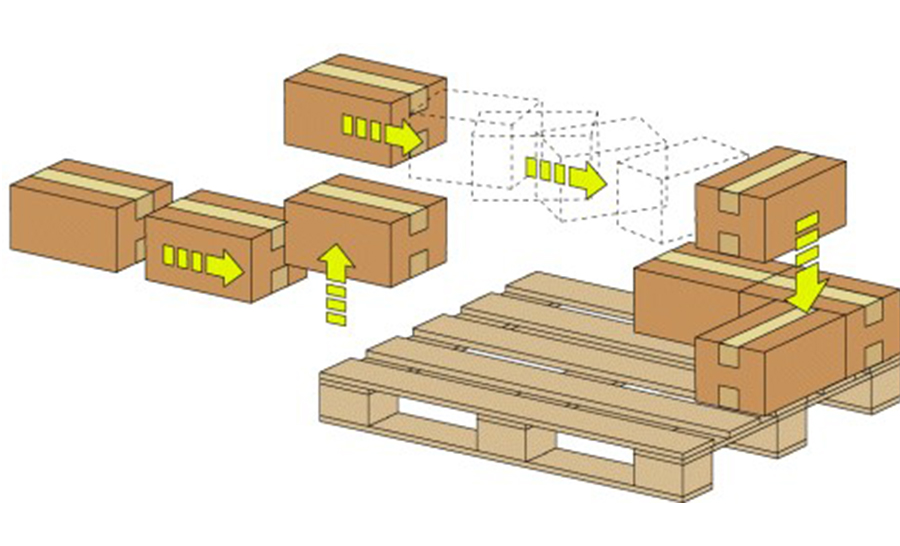

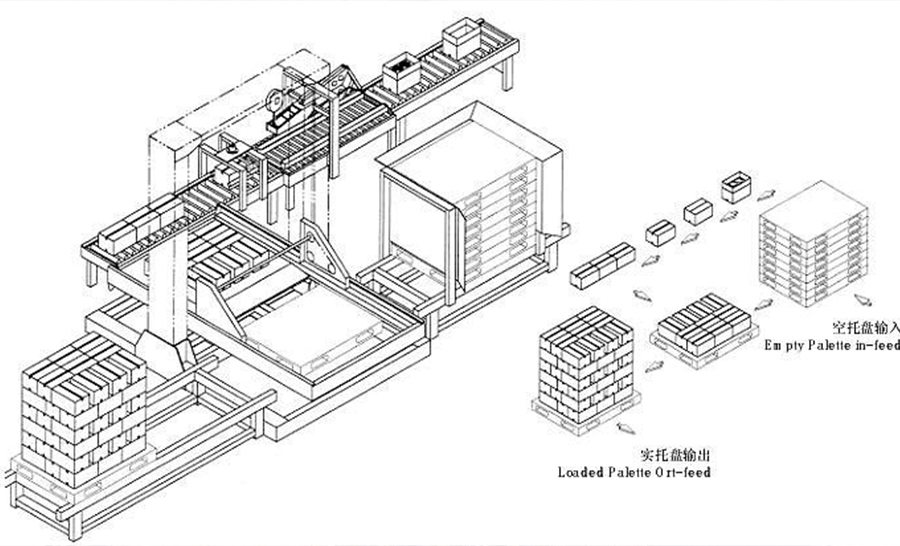

Palletizing machine is to be loaded into the container carton, according to a certain arrangement on the tray, the automatic stacking, stacking multi-layer, and then introduced to facilitate the truck to the warehouse storage. The device uses PLC + touch screen control, to achieve intelligent operation and management, simple, easy to master. Can greatly reduce the labor force and reduce labor intensity. Using high-speed, stable, space-saving concept design. Using separate off the board, faster, more space-saving. A machine with more, adjust quickly, do not have to worry about the replacement of stacked products. Scope: corrugated boxes, plastic boxes, barrel-like packaging, bag-like packaging.
- Brand: LINKS MACHINERY
- Code: 8422301090
Automatic Palletizer
Au Palletizing machine is to be loaded into the container carton, according to a certain arrangement on the tray, the automatic stacking, stacking multi-layer, and then introduced to facilitate the truck to the warehouse storage. The device uses PLC + touch screen control, to achieve intelligent operation and management, simple, easy to master. Can greatly reduce the labor force and reduce labor intensity. Using high-speed, stable, space-saving concept design. Using separate off the board, faster, more space-saving. A machine with more, adjust quickly, do not have to worry about the replacement of stacked products. Scope: corrugated boxes, plastic boxes, barrel-like packaging, bag-like packaging.
★ use of touch screen operation to achieve man-machine dialogue, can display the production speed, fault reasons and location, a high degree of automation. PLC can be used to order the carton sorting stacking layer, pallet supply and discharge can be programmed into the program to control.
★ The use of Japan's CMC company's chain with anti-wear good, high precision, stable transmission and so on.
★ Germany FESTO or Taiwan CHELIC, Japan SMC production of pneumatic components and cylinders, quality, reliable performance.
★ safety door, cover with electrical induction device, when the door is open, the machine stops working, can be staff protection.
★ stacking method of adjustment is convenient, simple, can be carried out on the touch screen. Stacking stability, high efficiency, can greatly save manpower.
★ carton supply system using brake motor control, to ensure a pre-set position to send cartons
★ pallets large capacity, can accommodate 12-15 empty pallets, automatic pallet can be achieved.
★ motor (motor), reducer are used in Germany Nord products.
★ Do not replace the stacking parts to complete several stacking methods.
According to the actual situation and product characteristics of the site I can for you to make low palletizing machine; high palletizer; servo palletizer; robot palletizer;
The Parameter of Machine
Model | MD-01 |
Power | 380V 50/60HZ 3.5KW |
Applicable pallet | L1200*W1200mm |
Speed | 10-20Cartons/min |
Max Height | <2000mm |
Dimension | 7300*4100*3300mm |

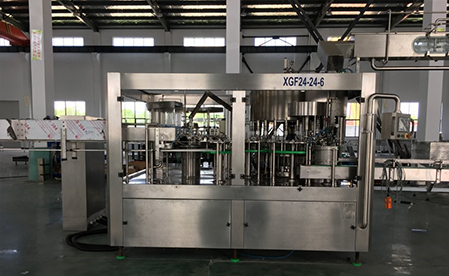

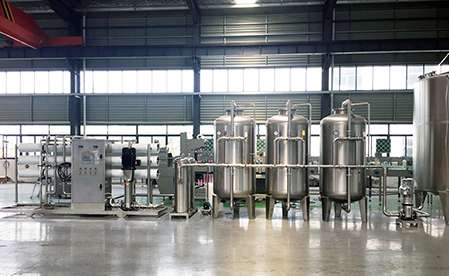

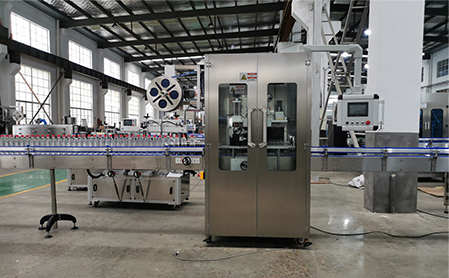

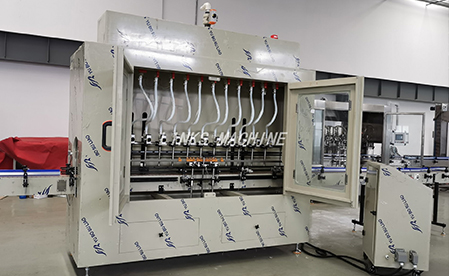

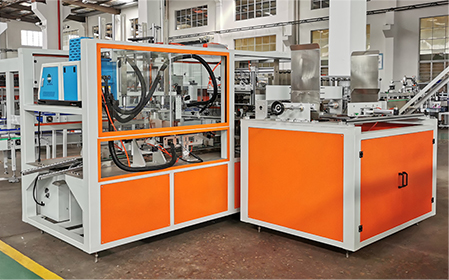

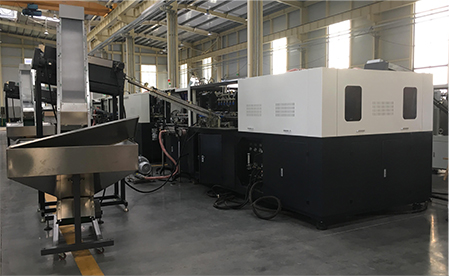

OTHER MACHINERY FROM LINKS MACHINERY
 | |
 | |
 |
Packing&Delivery
What’s the warranty of the machine?
18 months for machinery parts; 12 months for electric parts.
Do you provide the spare parts.
We provide the 1 year easy broken spare parts for customer together with the machine delivery.
During the warranty time, we provide the free-charge spare parts.
What is the delivery time?
Normally, our delivery time is 45-60days, it depends the types of machines.
How to install and cost?
We send our engineers to customer for installation and training, the time around 20-40days, it depends different kinds machines. Salary is 100USD/Day.
What is your advantage?
We are the original factory. We are more strict about our brand and machine quality.
We can provide the low cost of spare parts to our customer, and faster after-sales response.
