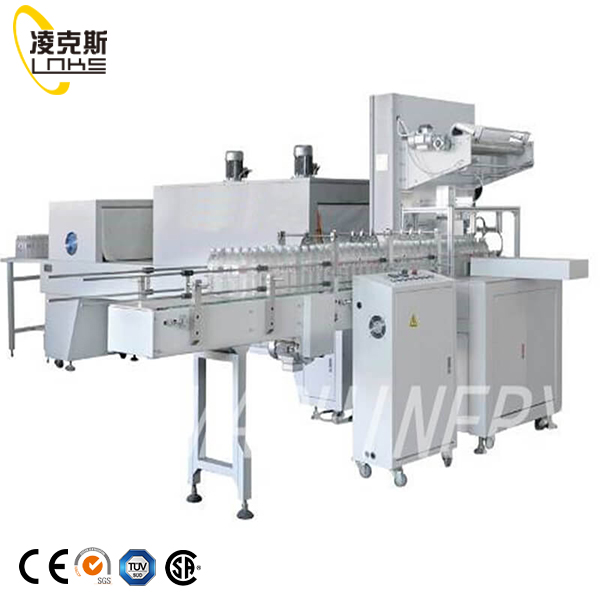

Automatic Bottle Film Wrapping Packing Machine

Automatic PE Film Shrink Packing Machine is suitable for wrapping pop-cans, bottles, etc, both with bottom-tray and without bottom-tray, working with PE shrink tunnels. The machine adopts the Germany advanced technology and international famous brands, which makes capability stable and using long-time

Quantity:

Model: CB-65
Brand: LINKS MACHINERY
Code: 8422400000

Product Description

Automatic Bottle Film Wrapping Packing Machine

1. The shape is artistic、excellent, the frame is novel、unique, and repair is easy.

2. Electronic induction feeding film, with stable and smooth transfer speed, replacing film quickly.

3. Using isothermal sealing cuter, the seal intensity is 3 times above cooling and sealing cutter, the seal is even and the life is 80 times above cooling and sealing cutter.

4. 3 sets of frequency control transport system, the transmission is precise and synchrony.

5. Adopting air circulation technology, the shrinkage chamber features rational structure, heat insulation, high precision for temperature control and better packing effects.

CB-65	Technical Parameters
Speed	22, 23, 3×4,4×6, 4*5
Applicable container shape	circular container、PE bottle、container outer diameter:￠40～￠110 height :60～340mm circular or quadrate container
Total power charge	24KW
Film thickness:	0.04-0.12mm
Operating air pressure	0.6～0.8Mpa
Machine dimension:	L×W×H=5500×3200×2100
Weight	1280kgs

CB-65 part name	Technology	Brand
Isothermal sealing cutter	TEFLON coat	USA DUPONT
PLC controller(core part)	Japan	OMRON
Transducer	France	SCHNEIDE
All cylinder	Original guide cylinder	CHANTO
Motor protector	Germany	SIEMENS
Regulator device	Taiwan	MINDMAN
Approaches switch	Korea	AUT0NIC
Contactor	Germany	SIEMENS
Meshy belt	USA	DUPONT TEFLON FIBRE

1) Can your factory provide the whole plant from A to Z?

A: Yes, we can provide the complete plant, from bottling making plant, water purification plant, to filling packing plant.

2) How can I know the machinery quality before I order?

A: Frist, we will invite you visiting our factory to check the machines quality, and show the machines running for you in our factory.

3)What certificates you can provide?

A: Our factory provide the CE, SGS, ISO, and accroding to some countries, we also can provide the Pvoc, Coc, Soncap...ect

4)Can your factory make the bottle drawing, workshop layout, and labels for us?

A: We can help customers design their own bottle shape, workshop layout and label drawings, these jobs are free charge.

(Workshop need customer to provide the size of factory)

5)Installation and Training Time

A: We have professional engineer for oversea installaion and training, they can speak English, and have much experience oversea work.

Customer needs to provide the engineer visa, air tickets, sleep room and meals. Each day salary is 80usd, around 20-40days.

6) Warranty time:

We provide the 18 months as our machinery parts warranty time, and electric parts warranty time is 12 month.

Technical specifications

CB-65

Technical Parameters

Speed

2*2, 2*3, 3×4,4×6, 4*5

Applicable container shape

circular container、PE bottle、container outer diameter:￠40～￠110height :60～340mm circular or quadrate container

Total power charge

24KW

Film thickness:

0.04-0.12mm

Operating air pressure

0.6～0.8Mpa

Machine dimension:

L×W×H=5500×3200×2100

Weight

1280kgs

CB-65 part name / 1

Technology

CB-65 part name / 2

Brand

Isothermal sealing cutter / 1

TEFLON coat

Isothermal sealing cutter / 2

USA DUPONT

PLC controller(core part) / 1

Japan

PLC controller(core part) / 2

OMRON

Transducer / 1

France

Transducer / 2

SCHNEIDE

All cylinder / 1

Original guide cylinder

All cylinder / 2

CHANTO

Motor protector / 1

Germany

Motor protector / 2

SIEMENS

Regulator device / 1

Taiwan

Regulator device / 2

MINDMAN

Approaches switch / 1

Korea

Approaches switch / 2

AUT0NIC

Contactor / 1

Germany

Contactor / 2

SIEMENS

Meshy belt / 1

USA

Meshy belt / 2

DUPONT TEFLON FIBRE
